| 基本尺寸 | 基本額定載荷 | 軸承類型 | 軸承圖片 | 型號 | |||
|---|---|---|---|---|---|---|---|
| dynamic | static | Type | Images | Model | |||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | |||

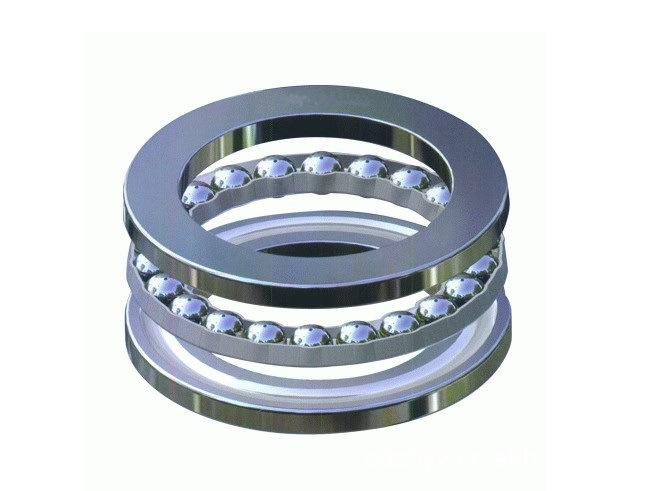

| 45 | 65 | 14 | 1.19 | 0.95 | 推力球軸承 |  |
51109 V/HR11T1 |
| 45 | 65 | 14 | 1.19 | 0.95 | 推力球軸承 | |
51109 V/HR11Q1 |
| 45 | 65 | 14 | 1.04 | 0.835 | 推力球軸承 | |
51109 V/HR22T2 |
| 45 | 65 | 14 | 1.04 | 0.835 | 推力球軸承 | |
51109 V/HR22Q2 |
| 40 | 60 | 13 | 1.11 | 0.89 | 推力球軸承 | |
51108 V/HR11T1 |
| 40 | 60 | 13 | 0.975 | 0.78 | 推力球軸承 | |
51108 V/HR22T2 |
| 40 | 60 | 13 | 1.11 | 0.89 | 推力球軸承 | |
51108 V/HR11Q1 |
| 40 | 60 | 13 | 0.975 | 0.78 | 推力球軸承 | |
51108 V/HR22Q2 |
| 35 | 62 | 18 | 0.96 | 0.765 | 推力球軸承 | |
51207 V/HR22Q2 |
| 35 | 52 | 12 | 1.01 | 0.81 | 推力球軸承 | |
51107 V/HR11Q1 |
| 35 | 52 | 12 | 0.885 | 0.71 | 推力球軸承 | |
51107 V/HR22T2 |
| 35 | 52 | 12 | 0.885 | 0.71 | 推力球軸承 | |
51107 V/HR22Q2 |
| 35 | 52 | 12 | 1.01 | 0.81 | 推力球軸承 | |
51107 V/HR11T1 |
| 35 | 62 | 18 | 1.09 | 0.87 | 推力球軸承 | |
51207 V/HR11T1 |
| 35 | 62 | 18 | 0.96 | 0.765 | 推力球軸承 | |
51207 V/HR22T2 |
| 35 | 62 | 18 | 1.09 | 0.87 | 推力球軸承 | |
51207 V/HR11Q1 |
| 30 | 52 | 16 | 0.9 | 0.72 | 推力球軸承 | |
51206 V/HR22T2 |
| 30 | 47 | 11 | 0.835 | 0.67 | 推力球軸承 | |
51106 V/HR22Q2 |
| 30 | 52 | 16 | 0.9 | 0.72 | 推力球軸承 | |
51206 V/HR22Q2 |
| 30 | 60 | 21 | 0.94 | 0.755 | 推力球軸承 | |
51306 V/HR22Q2 |
| 30 | 52 | 16 | 1.03 | 0.82 | 推力球軸承 | |
51206 V/HR11Q1 |
| 30 | 60 | 21 | 1.07 | 0.86 | 推力球軸承 | |
51306 V/HR11T1 |
| 30 | 47 | 11 | 0.95 | 0.76 | 推力球軸承 | |
51106 V/HR11Q1 |
| 30 | 60 | 21 | 0.94 | 0.755 | 推力球軸承 | |
51306 V/HR22T2 |
| 30 | 52 | 16 | 1.03 | 0.82 | 推力球軸承 | |
51206 V/HR11T1 |
| 30 | 47 | 11 | 0.835 | 0.67 | 推力球軸承 | |
51106 V/HR22T2 |
| 30 | 60 | 21 | 1.07 | 0.86 | 推力球軸承 | |
51306 V/HR11Q1 |
| 30 | 47 | 11 | 0.95 | 0.76 | 推力球軸承 | |
51106 V/HR11T1 |
| 25 | 52 | 18 | 0.9 | 0.72 | 推力球軸承 | |
51305 V/HR22Q2 |
| 25 | 47 | 15 | 0.93 | 0.75 | 推力球軸承 | |
51205 V/HR11Q1 |
